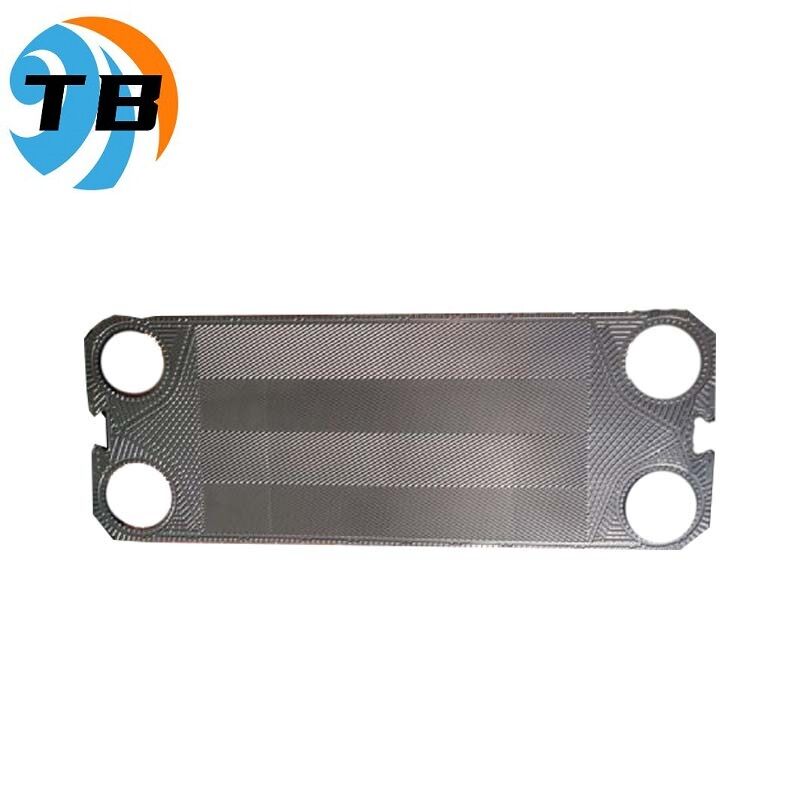

Heat Transfer Area 2.5 Square Meter Sondex Plate Heat Exchanger Offering Max Working Pressure 1.6MPa Designed for Thermal Exchange

Product Description:

The Sondex heat exchanger plate is a high-quality component designed specifically for use in Sondex plate type heat exchangers. Renowned for their efficiency and durability, these plates play a critical role in ensuring optimal heat transfer performance in various industrial applications. Crafted from premium stainless steel, the Sondex heat exchanger plate combines strength, corrosion resistance, and longevity, making it an ideal choice for demanding environments where reliability is paramount.

One of the standout features of the Sondex heat exchanger plate is its gasket plate design. This configuration not only allows for easy assembly and maintenance but also ensures a secure seal to prevent leakage during operation. The gasket plate heat exchanger design is a key factor in delivering consistent and efficient heat exchange, as it facilitates the controlled flow of fluids through the plate channels, maximizing the heat transfer process.

The weight of the Sondex heat exchanger plate varies depending on its size, typically ranging from 5 to 50 kilograms. This variance in weight allows for flexibility in application, enabling the selection of plates that best fit the specific requirements of different heat exchanger systems. Despite the differences in size and weight, all Sondex plates maintain a robust construction and superior material quality, ensuring dependable performance across a wide range of industrial settings.

With a heat transfer area of approximately 2.5 square meters, the Sondex heat exchanger plate offers an efficient surface for the exchange of thermal energy. This considerable surface area contributes to the plate’s ability to handle substantial heat loads, making it suitable for both heating and cooling applications. Whether integrated into a Sondex plate type heat exchanger for cooling processes or heating systems, the plate’s design supports optimal thermal management and energy efficiency.

Durability is further enhanced by the plate’s maximum operating pressure of 25 bar. This high-pressure tolerance ensures that the Sondex heat exchanger plate can withstand demanding operational conditions without compromising structural integrity or performance. Such capability is essential for industries where pressure fluctuations are common, and consistent heat transfer is critical to process stability and safety.

The Sondex cooling plate exchanger utilizes these plates to deliver reliable and effective cooling solutions. By incorporating the stainless steel Sondex heat exchanger plate, the cooling plate exchanger benefits from enhanced corrosion resistance and longevity, even when exposed to aggressive fluids or harsh environmental conditions. This makes the Sondex cooling plate exchanger a trusted choice for applications in HVAC, chemical processing, food and beverage production, and other sectors requiring efficient thermal regulation.

In summary, the Sondex heat exchanger plate is a vital component engineered to meet the rigorous demands of modern heat exchange systems. Its stainless steel construction, gasket plate design, substantial heat transfer area, and ability to operate under pressures up to 25 bar collectively contribute to its superior performance and reliability. Whether employed in a Sondex plate type heat exchanger or as part of a Sondex cooling plate exchanger, these plates ensure efficient, durable, and effective heat transfer, supporting a wide array of industrial processes with precision and dependability.

Features:

• Product Name: Sondex heat exchanger plate
• Type: Sondex plate type heat exchanger – Gasket Plate Heat Exchanger
• Maximum Operating Temperature: 225°C
• Weight: Depends on size, typically ranging from 5 to 50 Kg
• Plate Pattern: Chevron pattern for enhanced heat transfer efficiency
• Gasket Material Options: NBR, EPDM, Viton
• Design: Compact and efficient Sondex compact heat exchanger plate

Technical Parameters:

Applications:

The TB S17 model heat exchanger plate, originating from China and certified with ISO9001, is a high-quality Sondex plate heat transfer unit designed for a wide range of industrial applications. Manufactured using durable stainless steel, this Sondex industrial heat plate ensures excellent corrosion resistance and longevity, making it ideal for demanding environments where reliable heat exchange is critical. With a plate width of 500mm and plate thickness ranging from 0.4 mm to 1.2 mm, the S17 model offers versatile configurations tailored to specific heat transfer requirements.

The Sondex industrial heat plate is widely used in industries such as chemical processing, HVAC systems, food and beverage production, and pharmaceutical manufacturing. Its robust construction allows it to operate at a maximum working pressure of 1.6MPa, making it suitable for both low and high-pressure heat exchange scenarios. Whether it is used for cooling, heating, or heat recovery processes, the Sondex plate heat transfer unit delivers efficient thermal performance, helping to optimize energy consumption and reduce operational costs.

Typical application occasions for the TB S17 heat exchanger plate include plate heat exchangers in refrigeration systems, oil and gas processing plants, power generation facilities, and marine engineering. The stainless steel material ensures hygienic conditions necessary for food and beverage industries, while its ISO9001 certification guarantees consistent manufacturing quality and reliability. The Sondex industrial heat plate’s adaptability to various thermal loads and fluid types makes it a preferred choice for engineers and operators seeking dependable heat transfer solutions.

Additionally, the Sondex plate heat transfer unit is frequently employed in district heating and cooling networks, where efficient heat distribution is essential. The plate’s design facilitates easy maintenance and cleaning, which is vital in industries requiring strict adherence to safety and operational standards. Overall, the TB S17 model heat exchanger plate stands out as a versatile and durable component, ensuring optimal heat exchange performance across diverse industrial and commercial scenarios.

Customization:

TB brand offers the S17 model Sondex plate heat exchanger, a high-quality gasket plate heat exchanger manufactured in China. This product is certified with ISO9001, ensuring reliable performance and durability. The Sondex cooling plate exchanger features a maximum operating pressure of 25 Bar and can withstand temperatures up to 225°C, making it suitable for various industrial applications.

The gasket materials available for the Sondex industrial heat plate include NBR, EPDM, and Viton, providing flexibility to meet different sealing and chemical resistance requirements. As a versatile heat exchanger plate model, the S17 ensures efficient heat transfer and long-lasting operation in demanding environments.

Choose the TB Sondex plate heat exchanger for dependable performance in cooling and industrial heat exchange processes, backed by quality manufacturing and certified standards.
