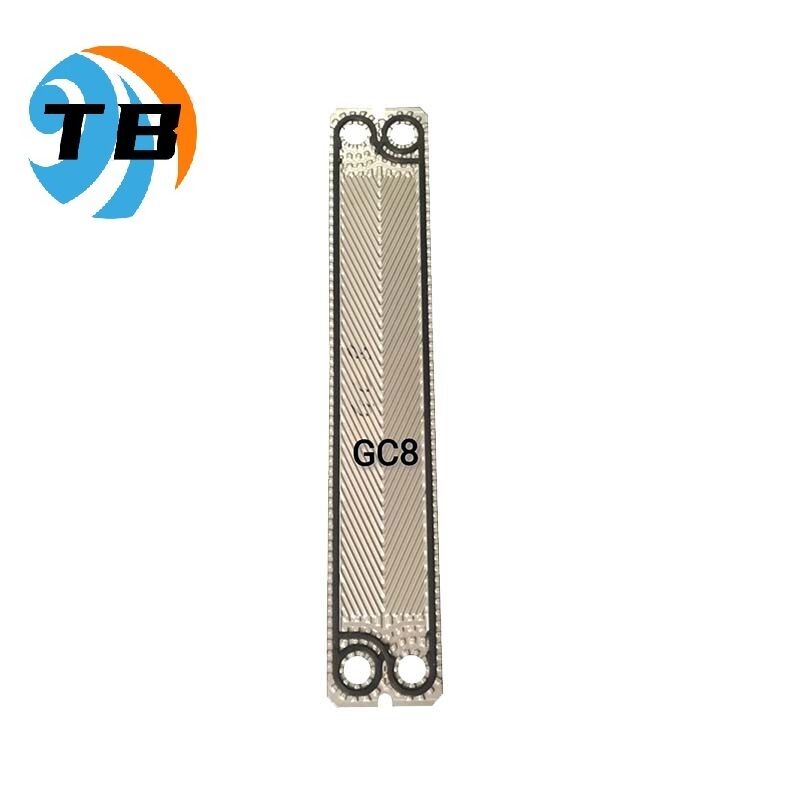

Plate thickness 0.4 mm to 1.2 mm Sondex heat exchanger plate connection size DN50 designed for heat transfer in diverse industries

Product Description:

The Sondex heat exchanger plate is a high-quality component designed for efficient heat transfer in various industrial applications. Manufactured from premium stainless steel materials, including AISI 316 and AISI 304, these plates ensure excellent corrosion resistance, durability, and long service life. The use of stainless steel enhances the plate's ability to withstand harsh operating environments, making it ideal for demanding processes involving aggressive fluids or high temperatures.

One of the key features of the Sondex heat exchanger plate is its plate thickness, which ranges from 0.4 mm to 1.2 mm. This range allows for customization based on specific heat transfer requirements and pressure conditions. Thinner plates provide higher heat transfer efficiency due to their larger surface area and improved thermal conductivity, while thicker plates offer increased mechanical strength and durability. This versatility makes the Sondex plates suitable for a wide range of heat exchanger designs and applications.

The Sondex Metal Heat Transfer Plate is characterized by its corrugated design, which significantly enhances the heat transfer performance. The Sondex Corrugated Heat Plate creates turbulent flow patterns as fluids pass through the heat exchanger, maximizing the heat exchange efficiency between the hot and cold streams. This corrugated structure not only improves heat transfer but also helps to reduce fouling by minimizing sediment buildup on the plate surfaces, ensuring consistent performance over time.

Another important aspect of the Sondex heat exchanger plate is the gasket system. The plates are equipped with high-quality gaskets made from materials such as NBR (Nitrile Butadiene Rubber), EPDM (Ethylene Propylene Diene Monomer), and Viton. These gasket materials are selected based on their compatibility with various fluids and operating temperatures. NBR gaskets offer excellent resistance to oils and fuels, EPDM gaskets provide superior performance with water and steam applications, and Viton gaskets are ideal for aggressive chemicals and high-temperature environments. This variety in gasket materials ensures reliable sealing and leak prevention in different industrial processes.

The Sondex Gasket Plate Heat Exchanger design enables easy assembly and maintenance. The plates can be quickly removed for cleaning or replacement of gaskets, minimizing downtime and operational costs. Additionally, the modular design allows for easy capacity adjustments by adding or removing plates according to process requirements. This flexibility makes the Sondex heat exchanger plates a cost-effective solution for industries such as chemical processing, food and beverage, HVAC, power generation, and pharmaceuticals.

Overall, the Sondex Metal Heat Transfer Plate offers a combination of robust stainless steel construction, optimized plate thickness, advanced corrugated design, and versatile gasket materials that deliver superior heat transfer performance and reliability. The Sondex Corrugated Heat Plate technology ensures efficient thermal exchange while maintaining durability and ease of maintenance. Whether for new installations or retrofitting existing systems, these plates are engineered to meet the highest standards of quality and efficiency in heat exchanger applications.

In summary, the Sondex heat exchanger plate is an excellent choice for industries seeking dependable and efficient heat transfer solutions. Its stainless steel material (AISI 316, AISI 304), variable plate thickness from 0.4 mm to 1.2 mm, and gasket options including NBR, EPDM, and Viton provide unmatched versatility and performance. The Sondex Metal Heat Transfer Plate and Sondex Corrugated Heat Plate technologies combine to ensure optimal heat exchange, durability, and ease of maintenance, making it a trusted component in the world of gasket plate heat exchangers.

Features:

• Product Name: Sondex Heat Exchanger Plate Element
• Model: Heat Exchanger Plate
• Maximum Operating Temperature: 225°C
• Weight: Depends On Size, Typically 5 To 50 Kg
• Connection Size: DN50
• Plate Type: Chevron Pattern
• Material Options: Sondex Metal Heat Transfer Plate and Sondex Stainless Steel Heat Plate

Technical Parameters:

Applications:

The Sondex Plate Heat Exchanger, model S17 by TB, is a high-performance industrial solution designed for a variety of heat transfer applications. Manufactured in China and certified with ISO9001, this Sondex Industrial Heat Exchanger Plate guarantees quality and reliability for demanding environments. Featuring a plate length of 1000mm and a plate width of 500mm, the unit is engineered with a Chevron pattern plate type to maximize heat transfer efficiency while maintaining compactness.

Thanks to its robust design, the Sondex Plate Heat Exchanger can operate at a maximum temperature of 225°C, making it suitable for high-temperature industrial processes. The connection size of DN50 allows for versatile integration into existing systems, providing ease of installation and maintenance. This makes the Sondex Industrial Heat Exchanger Plate an ideal choice for applications requiring efficient heat exchange under challenging conditions.

Typical application occasions for the Sondex Plate Heat Exchanger include chemical processing plants, HVAC systems, food and beverage production, and pharmaceutical manufacturing. In chemical industries, the Sondex Plate Heat Exchanger excels in heating and cooling aggressive fluids due to its durable construction and Chevron pattern, which enhances turbulence and heat transfer rates. In HVAC scenarios, it is commonly used for district heating, cooling, and heat recovery systems where energy efficiency and space-saving design are critical.

In food and beverage industries, the Sondex Industrial Heat Exchanger Plate is employed for pasteurization, sterilization, and temperature control processes, ensuring product quality and safety through precise thermal management. Additionally, pharmaceutical production benefits from the unit’s ability to maintain strict temperature control for sensitive processes, enhancing product consistency.

Overall, the Sondex Plate Heat Exchanger by TB model S17 is a versatile, reliable, and efficient solution suitable for a wide range of industrial heat exchange scenarios. Its combination of robust construction, high operating temperature capacity, and optimized Chevron pattern design makes it a preferred choice for industries aiming to improve energy efficiency and process reliability.

Customization:

The TB S17 Sondex Heat Exchanger Plate Element is a high-quality product originating from China, designed to meet rigorous industrial standards. Certified with ISO9001, this Sondex Industrial Heat Exchanger Plate ensures reliability and exceptional performance in various applications.

With a plate length of 1000mm and a heat transfer area of 2.5m², the Sondex Stainless Steel Heat Plate is engineered for efficient thermal exchange. The plate thickness ranges from 0.4 mm to 1.2 mm, allowing customization to fit specific operational requirements.

The weight of the plate depends on its size, typically varying between 5 to 50 Kg, providing flexibility in different installation scenarios. The maximum operating pressure of 25 Bar ensures robust performance under demanding conditions.

TB's S17 model offers tailored customization services to meet your precise needs, making it an ideal choice for industrial heat exchange solutions requiring the trusted quality of Sondex heat exchanger plates.

Support and Services:

For technical support and services related to Sondex heat exchanger plates, please ensure that you have the product model number, serial number, and detailed description of the issue ready when seeking assistance. Our team is equipped to provide guidance on installation, maintenance, troubleshooting, and optimization of your heat exchanger plates to ensure maximum performance and longevity.

We offer expert advice on plate replacement, gasket compatibility, and cleaning procedures to maintain the efficiency of your heat exchanger. Additionally, our services include performance assessments and recommendations tailored to your specific application needs.

To facilitate prompt and accurate support, please have all relevant operational data and maintenance records available. Our technical support specialists are committed to delivering comprehensive solutions and helping you achieve optimal heat exchanger performance.
