| Place of Origin: | china |
| ब्रांड नाम: | TB |
| प्रमाणन: | ISO9001 |
| मॉडल संख्या: | वी170 |
| न्यूनतम आदेश मात्रा: | 20pcs |
|---|---|
| मूल्य: | $100/pack |
| पैकेजिंग विवरण: | लकड़ी का केस |
| प्रसव के समय: | 5-8 दिन |
| भुगतान शर्तें: | एल/सी, डी/ए, टी/टी, डी/पी, वेस्टर्न यूनियन |
| आपूर्ति की क्षमता: | 10000 पैक/महीना |
| पाल बांधने की रस्सी: | एफडीए प्रमाणपत्र एनबीआर | परीक्षण दबाव: | 1.3/2.1 एमपीए |
|---|---|---|---|
| क्षमता: | उच्च ताप स्थानांतरण दक्षता | प्लेट सामग्री: | टाइटेनियम/निकल/हस्टॉली/स्टेनलेस स्टील |
| नमूना: | 200-80डी | रंग: | चांदी, पीला, भूरा |
| मुख्य घटक: | दबाव पोत | ऊष्मा स्थानांतरण क्षेत्र: | 0.1 - 50 वर्ग मीटर |
The plate heat exchanger is a highly efficient and versatile piece of equipment designed to transfer heat between two fluids with maximum effectiveness. This product is a compact plate heat exchanger that boasts exceptional performance, making it an ideal solution for a wide range of industrial applications. Its design ensures high heat transfer efficiency, which is a critical factor in processes requiring precise temperature control and energy conservation.

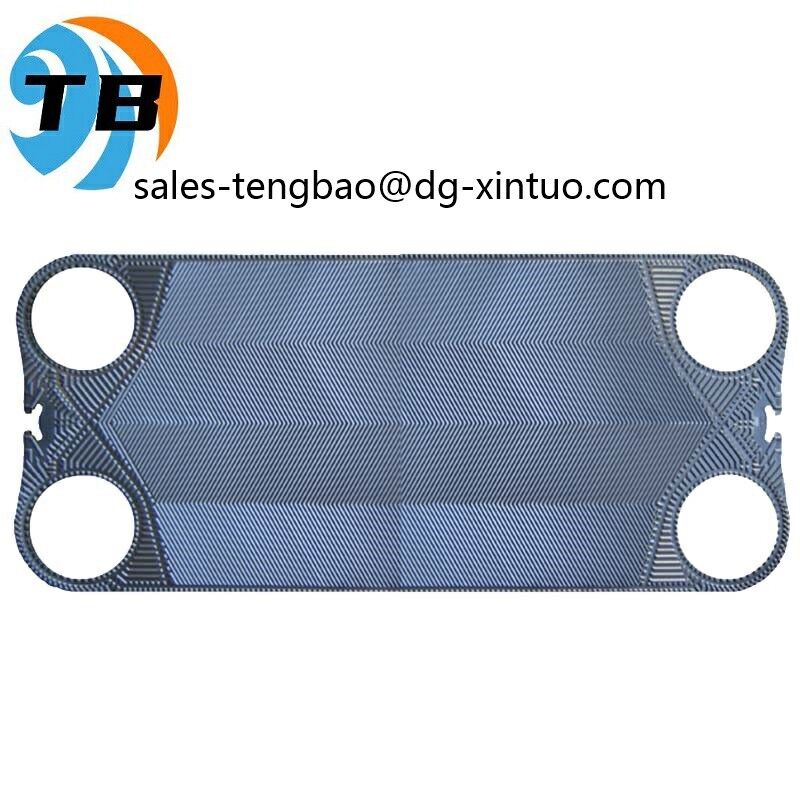

One of the standout features of this multi plate heat exchanger is the variety of premium plate materials available, including Titanium, Nickel, Hastelloy, and Stainless Steel. These materials are selected based on their excellent corrosion resistance, durability, and thermal conductivity, ensuring the heat exchanger can operate reliably under demanding conditions. The availability of Titanium plates, in particular, makes this exchanger suitable for handling aggressive fluids and high-temperature environments, further broadening its applicability.
Weighing just 50 kilograms, this compact plate heat exchanger is lightweight and easy to install, yet robust enough to perform under rigorous industrial settings. Its compact size does not compromise its capacity; instead, it allows for space-saving installations in facilities where area constraints are a concern. This makes it an excellent choice for industries such as chemical processing, pharmaceuticals, food and beverage production, and HVAC systems.
In terms of safety and reliability, the heat exchanger is rigorously tested to withstand pressures of 1.3 to 2.1 megapascals (MPa). This test pressure range guarantees that the unit can operate efficiently and safely at high pressures, which are common in many heat exchange applications. The pressure testing ensures the integrity of the plate connections and gasket seals, reducing the risk of leaks and maintaining optimal performance over time.
The design of the multi plate heat exchanger maximizes the surface area available for heat transfer by stacking multiple plates in a compact arrangement. Each plate creates a separate channel for the fluids to flow, allowing for turbulent flow patterns that enhance heat exchange efficiency. This design significantly improves the thermal performance compared to traditional shell-and-tube heat exchangers, resulting in lower energy consumption and operational costs.
Another advantage of this compact plate heat exchanger is its ease of maintenance. The modular construction allows for easy disassembly, cleaning, and inspection without extensive downtime. This feature is particularly beneficial in industries where hygiene and cleanliness are paramount, such as food processing and pharmaceuticals. The ability to quickly access internal components ensures that the heat exchanger maintains peak performance throughout its service life.
In summary, this compact plate heat exchanger offers a perfect combination of high heat transfer efficiency, durable materials, and compact design. With plate material options including Titanium, Nickel, Hastelloy, and Stainless Steel, it is engineered to meet diverse industrial requirements. Its lightweight construction, combined with a test pressure capacity of up to 2.1 MPa, ensures reliable and safe operation under demanding conditions. Whether you are seeking to optimize thermal management in your process or reduce energy costs, this multi plate heat exchanger provides an effective and economical solution.
| Machinery Test Report | Provided |
| Applications | HVAC, Chemical Processing, Food & Beverage |
| Color | Silver, Yellow, Brown |
| ISO Certification | Yes |
| Connection Type | Connecting Pipes |
| Efficiency | High Heat Transfer Efficiency |
| Heat Transfer Area | 0.1 - 50 M² |
| Plate Material | Titanium, Nickel, Hastelloy, Stainless Steel |
| Test Pressure | 1.3 / 2.1 MPa |
| Weight | 50 kgs |
The TB Brand plate heat exchanger, model number A055, originating from China and certified with ISO9001, is a highly efficient solution designed to meet diverse industrial needs. This pressed plate heat exchanger is engineered with core components such as a robust pressure vessel and offers a working pressure of up to 3.0MPa, ensuring reliable performance under demanding conditions. Available in an attractive combination of silver, yellow, and brown colors, the model 200-80D stands out for its high heat transfer efficiency and durable construction.
In industrial applications, the gasketed plate heat exchanger is widely used for heating, cooling, and heat recovery processes. Its modular design allows for easy maintenance and cleaning, making it ideal for industries such as chemical processing, HVAC systems, power plants, and food and beverage manufacturing. The plate type heat exchanger effectively handles fluids with varying temperatures and flow rates, optimizing energy consumption and operational costs.
The pressed plate heat exchanger is particularly suited for scenarios where space is limited but high thermal performance is required. Its compact size and high heat transfer efficiency make it perfect for use in district heating systems, refrigeration units, and oil cooling circuits. Furthermore, the gasketed plate heat exchanger can be customized with different gasket materials and plate configurations to accommodate corrosive or hygienic environments.
In addition to industrial use, the TB plate heat exchanger model A055 is also applicable in marine and automotive sectors where efficient thermal management is crucial. The model 200-80D's ability to withstand a working pressure of 3.0MPa ensures it can handle high-pressure systems without compromising safety or efficiency. The versatility of the plate type heat exchanger makes it suitable for both liquid-to-liquid and liquid-to-gas heat exchange applications.
Overall, the TB pressed plate heat exchanger combines advanced engineering with reliable performance, making it an essential component in any thermal management system. Whether used in heavy industry, commercial HVAC, or specialized manufacturing processes, this gasketed plate heat exchanger delivers superior heat transfer efficiency, durability, and ease of maintenance, supporting sustainable and efficient operation in a wide range of application occasions and scenarios.
Our TB A055 pressed plate heat exchanger is a high-quality product originating from China and certified with ISO9001, ensuring reliable performance and durability. The model 200-80D features a titanium plate design, providing excellent resistance and efficiency for various applications.
This sealed plate heat exchanger is designed to operate under a working pressure of up to 3.0MPa, making it suitable for demanding environments such as HVAC, chemical processing, and the food & beverage industry. Its heat transfer area ranges from 0.1 to 50 M², allowing customization to meet specific thermal requirements.
The compact plate heat exchanger design ensures space-saving installation without compromising heat transfer efficiency. Whether you need a solution for industrial or commercial use, the TB A055 model offers flexibility and superior performance tailored to your needs.
Our Plate Heat Exchanger products are designed to provide efficient and reliable heat transfer solutions for a wide range of industrial applications. We offer comprehensive technical support to ensure optimal performance and longevity of your equipment.
Technical Support:
Our team of experienced engineers is available to assist with the selection, installation, and maintenance of your plate heat exchanger. We provide detailed guidance on system design, troubleshooting, and performance optimization to help you achieve maximum efficiency.
Maintenance Services:
Regular maintenance is essential for the reliable operation of plate heat exchangers. We offer inspection, cleaning, and gasket replacement services to prevent fouling and leakage, ensuring your equipment operates at peak performance.
Spare Parts and Upgrades:
We supply genuine spare parts and offer retrofit solutions to upgrade existing units, enhancing performance and extending service life. Our parts meet strict quality standards to maintain the integrity of your heat exchanger.
Training and Documentation:
Comprehensive user manuals, installation guides, and maintenance instructions are provided with every product. Additionally, we offer training sessions for your technical staff to ensure proper handling and upkeep of the equipment.
Warranty and After-Sales Support:
All our plate heat exchangers come with a warranty that covers manufacturing defects. Our after-sales support team is dedicated to addressing any issues promptly to minimize downtime and maintain your operational efficiency.
