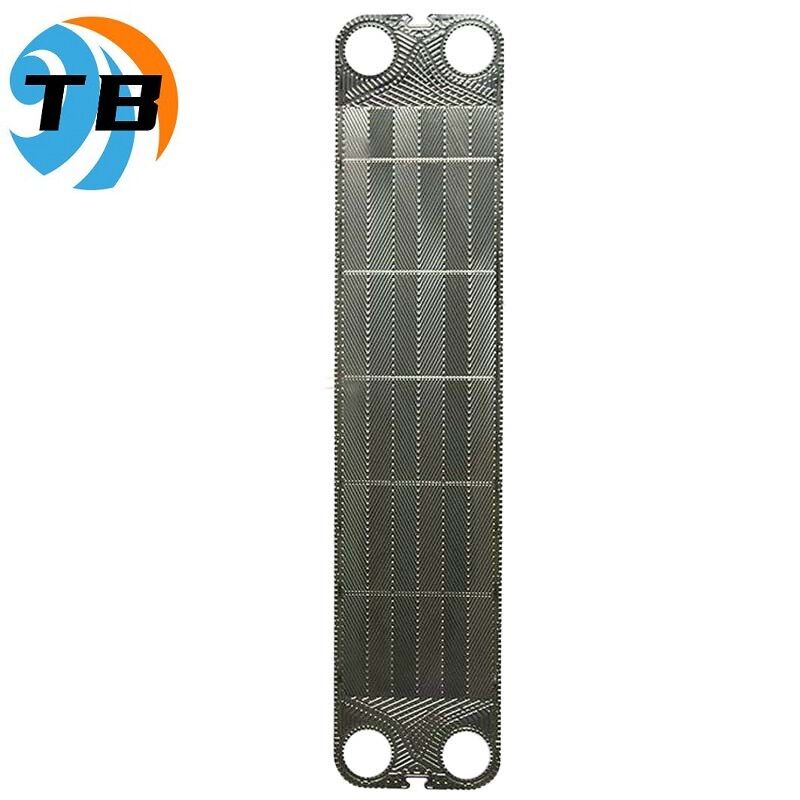

Max Working Pressure 10 Bar Sondex Thermal Exchange Plate Offering High Corrosionresistance and Heat Transfer Efficiency

Product Description:

The Sondex heat exchanger plate is a highly efficient and durable component designed to optimize heat transfer processes in various industrial applications. With a heat transfer area of 2.5m², this plate offers ample surface space to facilitate effective thermal exchange between fluids, ensuring maximum performance and energy efficiency. Whether used in HVAC systems, chemical processing, or food and beverage production, the Sondex heat exchanger plate stands out as a reliable and high-performing solution.
One of the defining features of the Sondex heat exchanger plate is its pressed design with an embossed pattern. This unique plating design enhances turbulence within the fluid channels, which significantly improves the heat transfer coefficient. The embossed pattern not only optimizes flow distribution but also increases the mechanical strength of the plate, making it capable of withstanding high pressures and temperature variations. This robust design ensures long-lasting operational stability and reduces maintenance needs, contributing to lower overall operational costs.
Corrosion resistance is a critical attribute for any heat exchanger plate, especially when exposed to aggressive fluids or harsh environmental conditions. The Sondex industrial heat plate excels in this aspect by utilizing high-grade materials and advanced manufacturing techniques that provide excellent resistance against corrosion. This ensures that the plate maintains its integrity and performance over extended periods, even in challenging industrial environments. The enhanced corrosion resistance also means fewer replacements and downtime, which is vital for maintaining continuous production processes.
Another significant advantage of the Sondex heat exchanger plate is its customizable veneer area. This customization allows the plate to be tailored to specific operational requirements and spatial constraints, making it highly versatile across different applications. Whether a particular installation demands a larger or smaller veneer area, the Sondex heat exchanger plate can be adapted accordingly to provide optimal heat transfer efficiency. This flexibility makes it an ideal choice for engineers and designers looking for bespoke heat exchange solutions that align perfectly with their system specifications.
The Sondex heat exchanger plate is renowned for combining high performance with durability and adaptability. Its precise engineering and manufacturing standards guarantee that each plate meets stringent quality benchmarks, ensuring reliability in demanding industrial settings. This product is a testament to Sondex’s commitment to innovation and excellence in the field of thermal management. By choosing the Sondex heat exchanger plate, industries can benefit from improved energy efficiency, reduced operational costs, and enhanced system longevity.
In summary, the Sondex heat exchanger plate delivers superior heat transfer efficiency with its 2.5m² heat transfer area and pressed embossed plate design. Its high corrosion resistance ensures durability in harsh environments, while the customizable veneer area allows for tailored solutions to meet specific application needs. As a critical component in Sondex’s range of industrial heat plates, it embodies quality, performance, and flexibility, making it a preferred choice for a wide range of heat exchange applications.

Features:

• Product Name: Sondex heat exchanger plate
• High-quality gasket material made of NBR for excellent sealing
• Available connection types: Threaded or Flanged for versatile installation
• Durable plate materials including Stainless Steel, Nickel, and Titanium
• Reliable after warranty service with online support
• Efficient heat transfer performance with Sondex heat exchanger plate
• Designed for compact and space-saving solutions using Sondex compact heat exchanger plate

Technical Parameters:

Applications:

The TB S17 Sondex heat exchanger plate, originating from China and certified with ISO9001, is a versatile and high-performance component designed for a wide range of industrial applications. Known for its superior quality and reliability, this Sondex industrial heat plate is engineered with a platethickness ranging from 0.4 to 1.2 mm, allowing it to efficiently handle various heat transfer demands. Its flange connection type ensures easy installation and secure fitting in complex piping systems, making it ideal for both new projects and retrofit applications.
One of the primary application occasions for the TB S17 model is in industrial cooling systems. The Sondex cooling plate exchanger is widely utilized in industries such as chemical processing, power generation, and HVAC systems, where effective heat dissipation is critical. Its customizable veneer area allows for tailored solutions that optimize heat transfer efficiency according to specific operational requirements. The use of NBR gasket material provides excellent sealing performance, ensuring the durability and leak-free operation of the heat exchanger plates even under high pressure and temperature variations.
In addition to cooling applications, the Sondex plate heat transfer unit serves as an essential component in food and beverage processing, pharmaceuticals, and oil refining industries. These sectors demand stringent hygiene and safety standards, which the TB S17 model meets through its robust construction and reliable sealing system. The plate design facilitates easy cleaning and maintenance, reducing downtime and operational costs. Its adaptability to various fluid types and temperatures makes it a preferred choice for heat recovery systems and thermal energy management.
Moreover, the TB S17 Sondex heat exchanger plate plays a crucial role in renewable energy applications, such as geothermal and solar thermal systems. Its ability to efficiently transfer heat between fluids helps maximize energy utilization and improve overall system performance. Whether in small-scale manufacturing units or large industrial plants, the Sondex industrial heat plate provides a cost-effective and sustainable solution for diverse thermal management needs.
Overall, the TB S17 model stands out as a reliable and efficient heat exchanger plate that supports a wide range of industrial scenarios. Its combination of ISO9001 certification, customizable features, and durable materials ensures optimal performance in demanding environments. The Sondex cooling plate exchanger and plate heat transfer unit are indispensable tools for industries seeking to enhance thermal efficiency, reduce energy consumption, and maintain operational excellence.

Customization:

Our TB S17 Sondex plate type heat exchanger offers exceptional customization services to meet your specific industrial needs. Manufactured in China and certified with ISO9001, this Sondex industrial heat plate is designed for reliability and efficiency.
The Sondex plate heat exchanger model S17 supports a maximum working pressure of 10 Bar and can operate at temperatures up to 250°C, making it suitable for demanding applications. The veneer area is fully customizable to ensure optimal heat transfer performance tailored to your requirements.
Designed for versatility, the TB S17 Sondex plate type heat exchanger is ideal for HVAC systems, food & beverage processing, and chemical processing industries. Connection types are available in threaded or flanged options to accommodate various installation needs.
Trust our customization services to provide you with a high-quality Sondex industrial heat plate that perfectly fits your application and operational demands.
